Power Adapters

Center Positive 5.5X2.1mm Connector

output: 24 VDC ± 1 % output current: 0.0-6.25 A ripple and noise: 180 mV power output: 150 W dimensions: 7.87" x 4.33" x 1.97" weight: 26.5 oz input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz

Input voltage: 100~240v AC, 0.3 amps, 50/60 Hz Output voltage: 3 v DC @ 1.67 amps Plug dimensions: 2.5mm ID x 5.5mm OD x 11mm tip length

Input: 100-240vac Output: 12vdc 8amp Connector: 2.5mmx5.5mm Center Conductor: Positive

Input: 100-240vac Output: 12vdc 6amp Connector: 2.5mmx5.5mm Center Conductor: Positive

Input: 100-240vac Output: 24vdc 4amp Connector: 2.5mmx5.5mm Center Conductor: Positive

1000mA (1 Amp) 12VDC UL Listed 2.1x5.5mm  Center Positive

output: 5 VDC ± 1 % (-V or COM and +V connections) output current: 0.0-5.0 A ripple and noise: 100 mV power output: 25 W dimensions: 3.94" x 3.82" x 1.38" weight: 12.35 oz overload protection: 105-150 % fold back current limiting with auto-recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature: 14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min): I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

output: 12 VDC ± 1 % output current: 0.0-2.1 A ripple and noise: 100 mV power output: 25 W dimensions: 3.94" x 3.82" x 1.38" weight: 12.35 oz overload protection: 105-150 % fold back current limiting with auto-recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature:  14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min):  I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

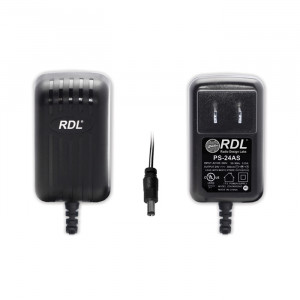

24 Vdc Switching Power Supply 2.5mmx5.5mm Connector, Center(+) North American Cord Energy Star Level V DC Plug for Quick Connection to Numerous RDL Modules dc Plug May be Cut Off for Hard Wiring to RDL Modules Compatible with Associated RDL PS Mounting Accessories

24 Vdc Switching Power Supply 2.5mmx5.5mm Connector, Center(+) North American AC Plug Energy Star Level VI DC Plug for Quick Connection to Numerous RDL Modules dc Plug May be Cut Off for Hard Wiring to RDL Modules Compatible with Associated RDL PS Mounting Accessories

Made for micro USB compatible mobile phones, tablets, media players, gaming devices and Raspberry Pis Protects from short circuit, over current and over voltage

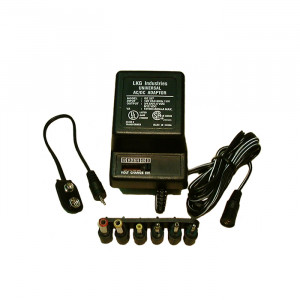

supply voltage: 100-110 VAC, 60 Hz, 0.65 A power: 24 W output voltages: 3, 4.5, 5, 6, 7.5, 9, 12 VDC (selectable) output current: 2 A max. cable length: 47.2 inch dimensions: 3.15 x 1.77 x 0.99" weight: 7.05oz 6 female plugs: 2.1 x 5.0 mm 2.5 x 5.5 mm 1.1 x 3.0 mm 0.7 x 2.5 mm 13.5 x 3.5 mm 15.0 x 3.5 mm

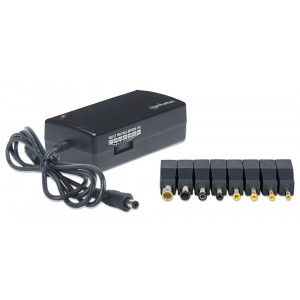

with 9 detachable DC plugs additional 5V/0.6A USB output for netbook computers and digital electronic devices stabilised output, low ripple and noise very high efficiency and low energy consumption replaceable power cord power LED supply voltage: 100 240VAC 50/60 Hz power: 63W selectable output voltages: 5VDC, 0.6A (USB) 9.5 - 12V, 4.5A 15V, 4A 18 - 19V, 3.16A 20VDC, 3A plugs: see 'Files' for a graphical overview bent plugs: 2 pcs (A): ID: 2.1mm, OD: 5.5mm (R): ID: 1.7mm, OD: 5.5mm straight plugs: 9 pcs (C): ID: 1.7mm, OD: 4.75mm (D): ID: 3.0mm, OD: 6.3mm (E): ID: 1.4mm, OD: 6.5mm (F): special Dell 3-pin plug (G): ID: 1.0mm, OD: 5.0mm (H): ID: 1.9mm, OD: 5.5mm (I): ID: 2.5mm stereo plug, OD: 6mm (J): ID: 3.5mm stereo plug, OD: 9.3mm (K): ID: 0.6mm, OD: 7.4mm additional plugs: PLUGSPSET2 dimensions: 1 31/32" x 1 3/16" x 4 21/64"

input voltage: 12 - 13.8 VDC output voltages: 15, 16, 18, 19, 20, 22, 24 VDC (±10%) current: 6 A max. (for 15, 16, 18, 19, 20 VDC output) / 5 A max. (for 22, 24 VDC output) power: 120 W fuse-protected thermal cut-off

output: 12 VDC ± 1 % output current: 0.0-12.5 A ripple and noise: 180 mV power output: 150 W dimensions: 7.87" x 4.33" x 1.97" weight: 26.5 oz overload protection: 105-150 % fold back current limiting, non-automatic recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature:  14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min):  I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

output: 12VDC ± 1% output current: 0.0 8.3A ripple and noise: 200mV power output: 100W dimensions: 7 7/8" x 3 13/16" x 1 3/8" weight: 20.45 oz overload protection: 105% - 150% fold back current limiting, non-automatic recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature: 14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min): I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

Operates on 110/120VAC Multi-Voltage Output: 3, 4.5, 6, 7.5, 9, 12 VDC  Provides constant current from 0-2000mA  Fully regulated, low ripple  Short circuit protection Automatic thermal cut off  Automatic overload protection Heavy Duty Red and Black Binding Posts 3-3/4" Wide x 5-1/4" Long x 2-5/8" High

Inputs: 100-140V AC @60Hz  Output: 3, 4.5, 6.0, 7.5, 12V  DC Current: 0-1000mA

32 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

Center positive 5.5X2.1mm Connector

Center positive 5.5X2.1mm Connector

48 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

Center positive 5.5X2.1mm Connector

Center Positive 5.5X2.1mm Connector

40 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

5 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

Inputs: 100-140V AC @60Hz  Output: 3, 4.5, 6.0, 7.5, 12V  DC Current: 0-1000mA

7.5 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts (+/-0.5V)

12 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts (+/-0.5V)

20 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

24 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)
