DC Output

Items 1 to 36 of 38 total

Grid List

Tripplite 13.8VDC 10-Amp Precison Power Supply, PR10

$89.90
7.5 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts (+/-0.5V)

LINROSE Power Supply 12v 8amp, AD8

$69.90
Input: 100-240vac Output: 12vdc 8amp Connector: 2.5mmx5.5mm Center Conductor: Positive

Wall Power Adapter 3VDC 1.67A, FRA05-S03-U

$5.90
Input voltage: 100~240v AC, 0.3 amps, 50/60 Hz Output voltage: 3 v DC @ 1.67 amps Plug dimensions: 2.5mm ID x 5.5mm OD x 11mm tip length

VELLEMAN 24VDC 150 Watt Switching Power Supply, PSIN15024N

$34.90
output: 24 VDC ± 1 % output current: 0.0-6.25 A ripple and noise: 180 mV power output: 150 W dimensions: 7.87" x 4.33" x 1.97" weight: 26.5 oz input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz

VELLEMAN 5VDC 25 Watt Switching Power Supply, PSIN02505N

$16.90
output: 5 VDC ± 1 % (-V or COM and +V connections) output current: 0.0-5.0 A ripple and noise: 100 mV power output: 25 W dimensions: 3.94" x 3.82" x 1.38" weight: 12.35 oz overload protection: 105-150 % fold back current limiting with auto-recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature: 14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min): I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

VELLEMAN Switching Power Supply 12VDC 25 Watt, PSIN02512N

$12.80
output: 12 VDC ± 1 % output current: 0.0-2.1 A ripple and noise: 100 mV power output: 25 W dimensions: 3.94" x 3.82" x 1.38" weight: 12.35 oz overload protection: 105-150 % fold back current limiting with auto-recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature:  14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min):  I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

VELLEMAN 12VDC 100 Watt Switching Power Supply, PSIN10012N

$19.90
output: 12VDC ± 1% output current: 0.0 8.3A ripple and noise: 200mV power output: 100W dimensions: 7 7/8" x 3 13/16" x 1 3/8" weight: 20.45 oz overload protection: 105% - 150% fold back current limiting, non-automatic recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature: 14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min): I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

VELLEMAN 12VDC 150 Watt Switching Power Supply, PSIN15012N

$28.45
output: 12 VDC ± 1 % output current: 0.0-12.5 A ripple and noise: 180 mV power output: 150 W dimensions: 7.87" x 4.33" x 1.97" weight: 26.5 oz overload protection: 105-150 % fold back current limiting, non-automatic recovery input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz input rush current: 15 A @ 110 V setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC working temperature:  14 °F to 32 °F: 80 % load 32 °F to 122 °F: 100 % load 122 °F - 140 °F: 60 % load operating humidity conditions: 20-90 % RH overload protection: 105-150 % fold back current limiting with auto-recovery withstand voltage (max. 1 min):  I/P - O/P: 1.5 kVAC I/P - FG: 0.5 kVAC DC adjustment range: ± 10 % rated output voltage (V adj) efficency: 74 % connection: 5, 7, or 9 pole terminal block, pitch 0.37"

VELLEMAN Regulated Switching Car Power Supply - 120 Watt, CARS6000N

$29.90
input voltage: 12 - 13.8 VDC output voltages: 15, 16, 18, 19, 20, 22, 24 VDC (±10%) current: 6 A max. (for 15, 16, 18, 19, 20 VDC output) / 5 A max. (for 22, 24 VDC output) power: 120 W fuse-protected thermal cut-off

VELLEMAN Universal Switching Mode Regulated Adapter - Output: 9.5 to 20VDC + 5v USB output - 63W, PSSE4U

$49.90
with 9 detachable DC plugs additional 5V/0.6A USB output for netbook computers and digital electronic devices stabilised output, low ripple and noise very high efficiency and low energy consumption replaceable power cord power LED supply voltage: 100 240VAC 50/60 Hz power: 63W selectable output voltages: 5VDC, 0.6A (USB) 9.5 - 12V, 4.5A 15V, 4A 18 - 19V, 3.16A 20VDC, 3A plugs: see 'Files' for a graphical overview bent plugs: 2 pcs (A): ID: 2.1mm, OD: 5.5mm (R): ID: 1.7mm, OD: 5.5mm straight plugs: 9 pcs (C): ID: 1.7mm, OD: 4.75mm (D): ID: 3.0mm, OD: 6.3mm (E): ID: 1.4mm, OD: 6.5mm (F): special Dell 3-pin plug (G): ID: 1.0mm, OD: 5.0mm (H): ID: 1.9mm, OD: 5.5mm (I): ID: 2.5mm stereo plug, OD: 6mm (J): ID: 3.5mm stereo plug, OD: 9.3mm (K): ID: 0.6mm, OD: 7.4mm additional plugs: PLUGSPSET2 dimensions: 1 31/32" x 1 3/16" x 4 21/64"

VELLEMAN Compact Switching Power Supply with Selectable Output: 3 to 12VDC - 24W 2A max, PSSEMV1U

$15.60
supply voltage: 100-110 VAC, 60 Hz, 0.65 A power: 24 W output voltages: 3, 4.5, 5, 6, 7.5, 9, 12 VDC (selectable) output current: 2 A max. cable length: 47.2 inch dimensions: 3.15 x 1.77 x 0.99" weight: 7.05oz 6 female plugs: 2.1 x 5.0 mm 2.5 x 5.5 mm 1.1 x 3.0 mm 0.7 x 2.5 mm 13.5 x 3.5 mm 15.0 x 3.5 mm

VELLEMAN Micro USB Wall Charger 5VDC 2.5A, PSSEUSB26BU

$9.90
Made for micro USB compatible mobile phones, tablets, media players, gaming devices and Raspberry Pis Protects from short circuit, over current and over voltage

RDL 24Vdc Switching Power Supply 500ma, PS-24AS

$26.77
24 Vdc Switching Power Supply 2.5mmx5.5mm Connector, Center(+) North American AC Plug Energy Star Level VI DC Plug for Quick Connection to Numerous RDL Modules dc Plug May be Cut Off for Hard Wiring to RDL Modules Compatible with Associated RDL PS Mounting Accessories

RDL 24 Vdc Switching Power Supply 2 Amp, PS-24V2A

$82.64
24 Vdc Switching Power Supply 2.5mmx5.5mm Connector, Center(+) North American Cord Energy Star Level V DC Plug for Quick Connection to Numerous RDL Modules dc Plug May be Cut Off for Hard Wiring to RDL Modules Compatible with Associated RDL PS Mounting Accessories

LINROSE Power Supply 12v 6amp, AD6

$29.90
Input: 100-240vac Output: 12vdc 6amp Connector: 2.5mmx5.5mm Center Conductor: Positive

LINROSE Power Supply 24VDC 4 Amp, AD4-24

$39.90
Input: 100-240vac Output: 24vdc 4amp Connector: 2.5mmx5.5mm Center Conductor: Positive

Tripplite 13.8VDC 15-Amp Precison Power Supply, PR15

$129.00
12 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts (+/-0.5V)

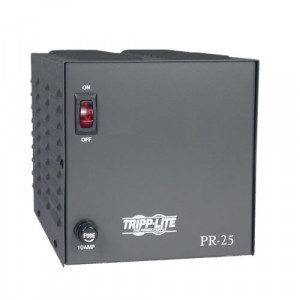

Tripplite 13.8VDC 25-Amp Precison Power Supply, PR25

$199.00
20 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

Tripplite 13.8VDC 30-Amp Precison Power Supply, PR30

$229.00
24 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

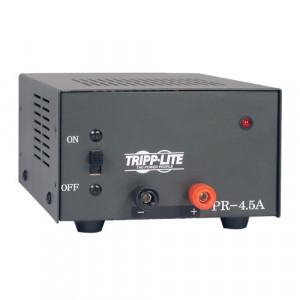

TRIPPLITE 13.8VDC 4.5-Amp Precison Power Supply, PR4.5

$49.90
4.5 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

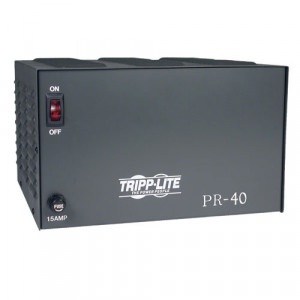

Tripplite 13.8VDC 40-Amp Precison Power Supply, PR40

$249.00
32 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

Tripplite 13.8VDC 50-Amp Precison Power Supply, PR50

$299.00
40 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

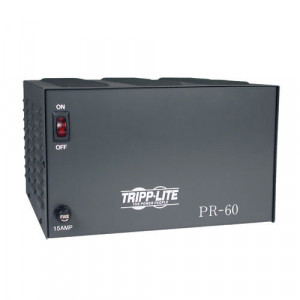

Tripplite 13.8VDC 60-Amp Precison Power Supply, PR60

$329.00
48 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

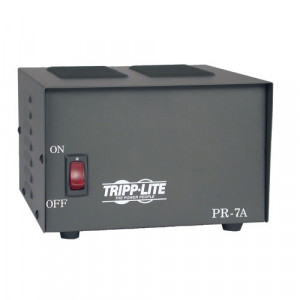

Tripplite 13.8VDC 7-Amp Precison Power Supply, PR7

$69.90
5 AMPS CONTINUOUS DUTY Efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V)

PHILMORE 1000mA Switchable Power Supply, 48-1088

$19.74
Inputs: 100-140V AC @60Hz  Output: 3, 4.5, 6.0, 7.5, 12V  DC Current: 0-1000mA

PHILMORE 1700mA Switchable Power Supply, 48-1189

$23.09
Inputs: 100-140V AC @60Hz  Output: 3, 4.5, 6.0, 7.5, 12V  DC Current: 0-1000mA

PHILMORE Switchable Output Power Supply, MW122A

$29.90
Operates on 110/120VAC Multi-Voltage Output: 3, 4.5, 6, 7.5, 9, 12 VDC  Provides constant current from 0-2000mA  Fully regulated, low ripple  Short circuit protection Automatic thermal cut off  Automatic overload protection Heavy Duty Red and Black Binding Posts 3-3/4" Wide x 5-1/4" Long x 2-5/8" High
