PC Boards

16 Item(s)

Grid List

DATAK Solder Type Protoboard 1.9" x 3.0", 12-614

$8.10
1.9" x 3.0" board with a total of 400 solder type donut pads/holes Material: FR-4 fiberglass Will match with RH20 push-in protoboard .042" diameter holes with copper donut surrounds Holes spaced 0.10" centers Board thickness is 1/16"

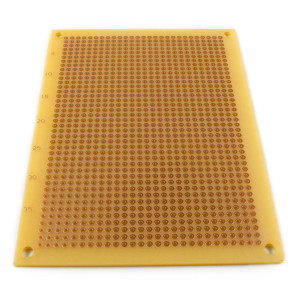

DATAK Phenolic Solder Type Protoboard 3.15" x 4.33", 12-610

$5.01
Solder type 1,080 copper donut pads in a grid size 27 x 40 Pads spaced upon .10" centers, board thickness: 1/16" Corner mounting holes are .140" diameter and spaced approximaately 2.83" apart on smaller side and 4.00" apart on the long side

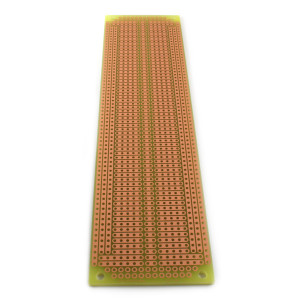

DATAK 830 Point Matching Protoboard, 12-624

$10.10
FR-4 glass epoxy Solder type protoboard Board thickness: 1/16"

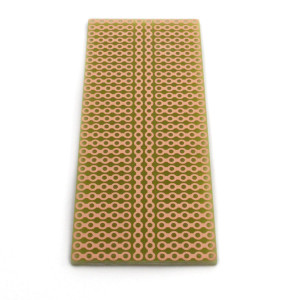

DATAK Solder Type Protoboard 1.2" x 3.0", 12-613

$7.12
1.2" x 3.0" board with a total of 300 solder type donut pads/holes Will match with RH20 push-in protoboard .042" diameter holes with copper donut surrounds Holes spaced 0.10" centers Board thickness is 1/16"

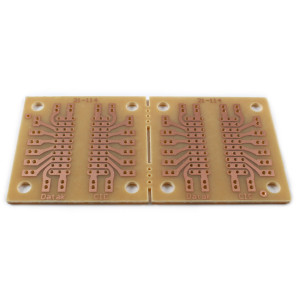

DATAK Solder Type Small IC Protoboard 1.8"x3.6", 12-616

$2.23
Size 1.8" wide x 3.6" long Component holes and pads are spaced on 1/10" centers

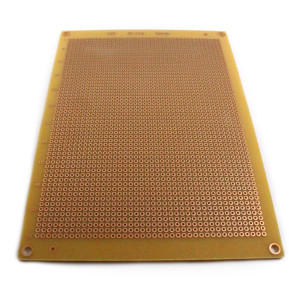

DATAK Solder Type Protoboard 6.25" x 4.5", 12-620

$6.20
6.25" x 4.5" Over 2100 drilled pads on 1/10" Flip side includes a screen printed alpha and numeric system

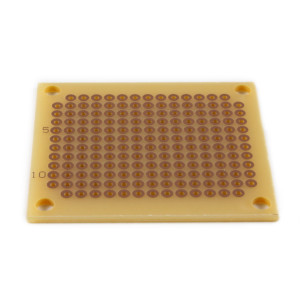

DATAK Solder Type Protoboard 1.535" x 1.73" 4 pack, 12-604

$5.52
4-Boards per package Solder type board with 176 copper donut pads - single sided (4) Mounting holes 1/8" diameter spaced 1.3" x 1.49" Board thickness: 1/16"

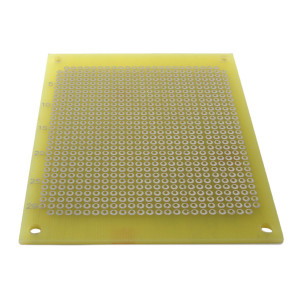

DATAK Fiberglass Solder Type Protoboard 2.835" x 3.70", 12-630

$5.93
Dimensions: 2.835" x 3.70" 750 pre-tinned copper donut pads on one side of the board Grid is 25 x 30 pads rectangle (4) Mounting holes are 0.140" diameter on 2.50" and 3.38" centers Board thickness: 1/16"

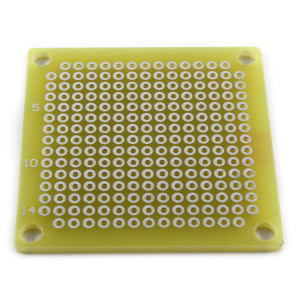

DATAK Fiberglass Solder Type Protoboard 1.77" x 1.77" 2pk, 12-628

$5.23
2-Boards per package Dimensions: 1.77" x 1.77" 221 pre-tinned copper donut pads on one side of the board Grid is 15 x 15 pads square (4) Mounting holes are 0.140" diameter on 1.54" centers Board thickness: 1/16"

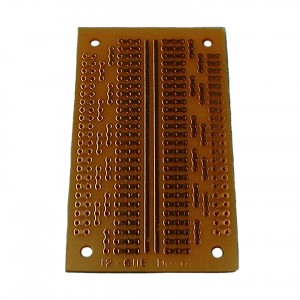

DATAK Solder Type Protoboard 1.7" x 2.9", 12-611

$1.95
1.7" x 2.9" Accommodates transistors and common passive components

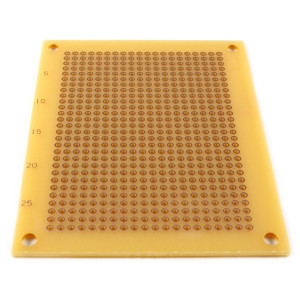

DATAK Solder Type Protoboard 2.56" x 3.23" 2 pack, 12-609

$5.52
Package of 2 560 copper donut pads in a 20 x 28 grid Copper solder pads are spaced on .100" centers Pads will accommodate small component leads, ICs and header pins (4) mounting holes 0.140" spaced 2.24" and 2.92" centers 1/16" board thickness

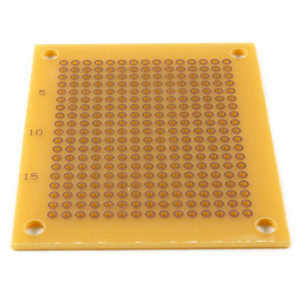

DATAK Solder Type Protoboard 1.93" x 2.33" 3 pack, 12-606

$5.52
(3) Boards per package Solder type board with 285 copper donut pads - single sided on 0.10" centers 15 x 19 grid (4) Mounting holes are 1/8" diameter spaced on 1.6" x 2.0" centers Board thickness: 1/16"
