Distribution & Switching

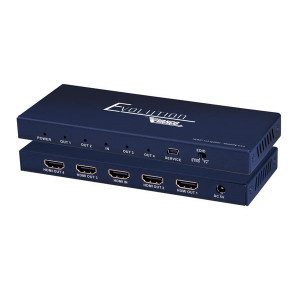

VANCO HDMI Evolution 1x4 Distribution Amplifier 2k4k, EVSP4K14
$129.00
Transmits audio and video from a single source to 4 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
3D frame sequential video format up to 1080p@60
Supports high resolution VESA mode video format up to QSXGA 2560x2048@60Hz
Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
Dynamic and Manual EDID management modes to ensure compatibility during installation
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Supports Hot-plug
High bandwidth: 18 Gbps
Features status indicator for connection & input HDCP compliance
Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
Dimensions: 6.4” W x .6” H x 2.5” D

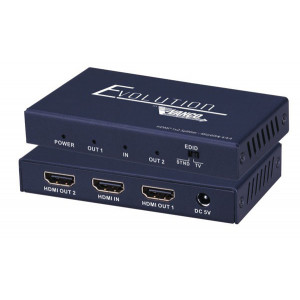

VANCO Evolution HDMI 1x2 Distribution Amplifier 2k4k, EVSP4K12
$99.00
Transmits audio and video from a single source to 2 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
3D frame sequential video format up to 1080p@60
Supports high resolution VESA mode video format up to QSXGA 2560x2048@60Hz
Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
Dynamic and Manual EDID management modes to ensure compatibility during installation
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Supports Hot-plug
High bandwidth: 18 Gbps
Features status indicator for connection & input HDCP compliance
Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
Dimensions: 4” W x .4” H x 2.3” D

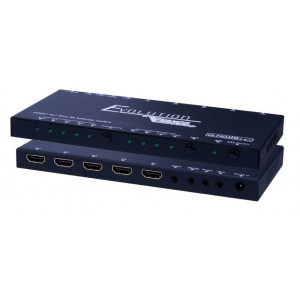

VANCO Evolution HDMI 4x1 True 4k Switcher with IR Remote, EVSW1042
$179.00
Supports 4K2K (2160p @60Hz w/ 4:4:4 color sampling) Ultra High Definition Resolutions
Supports HDR (High Dynamic Range)
Features Audio EDID management which allows selection of preferred audio channel
Supports auto switching or manual switching mode
IR pass-through for source control with included IR accessories
Controllable via RS-232 and/or IR
Supports ARC (Audio Return Channel) and CEC (Consumer Electronic Control) functionality
Supports PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1 CH audio formats
Digital and analog audio outputs for audio extraction
HDCP 2.2 compliant
5V DC Power Supply
Dimensions: 7” W x .5” H x 3.3” D

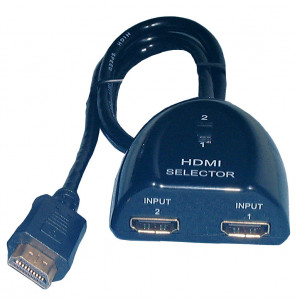

PHILMORE 2-Way HDMI Switch, 44-562
$19.90
Input: HDMI sockets
Output: 24" Pigtail HDMI cable
Supports 480i, 480p, 720i, 720p, 1080i, 1080p Resolutions, up to 60Hz. Selector Slide Switch
Plug and Play

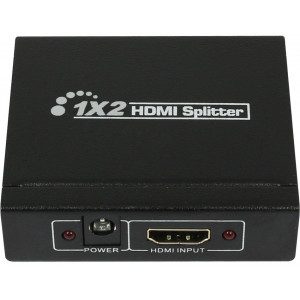

VANCO HDMI 1x2 Distribution Amplifier, 280902
$59.90
Allows 1 HDMI source to be displayed on up to 2 HDMI displays
Supports High Definition Resolution 1080p and 3D
Supports digital audio format, DTS/Dolby Digital
Simple Plug and Play solution
HDCP Compliant
New

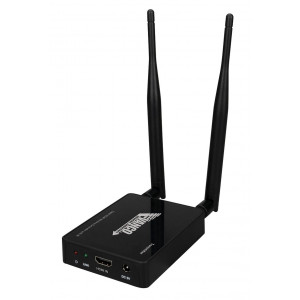

VANCO Wireless HDMI Extender with IR, HDEXWIR
$399.00
Extends HDMI signals wirelessly up to 164ft/50m
Supports up to 1080p@60Hz HD video and audio
IR pass-through to control source from display location wirelessly
No line of sight installation required, wireless signal can pass through most obstacles
HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
Supports LPCM 2.0ch 32KHz/44.1KHz/48KHz Audio Formats
Utilizes H.265 high performance codec technology
Low latency with less than 120ms
Compact design for easy and flexible installation behind a display
Dimensions: 3” W x 3.8” D x 0.8” H
MANHATTAN Displayport Male to HDMI Female Adaptor, 151993
$17.90
Converts a DisplayPort signal to an HDMI signal
Delivers a high-quality digital video signal — ideal for using a new DisplayPort source with an existing HDMI display
Supports Deep Color, high-bandwidth 10.8 Gbps applications and resolutions of up to 1920 x 1200
Integrated design simplifies connections and eliminates cable tangles and clutter

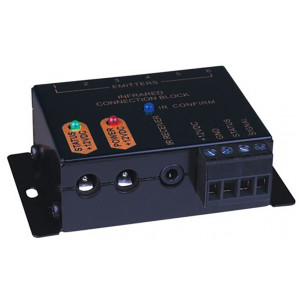

VANCO One Zone Six Source IR Repeater Kit, 280731
$69.90
Allows for the Transmission of IR Signals from up to 6 IR Emitters to one IR Receiver
IR Receiver works in most lighting environments, including CFL
Kit includes (1) Connecting Block, (1) Mini IR Receiver, (2) Single IR Emitters and (1) 12 VDC Power Supply
A total of 6 IR Emitters can be supported
IR Receive Frequency: 34 kHz to 60 kHz
IR Transmit Frequencies: 38 kHz & 56 kHz
Range: 40 ft at 38 kHz & 25 ft at 56 kHz
Power Supply, 12 VDC, 3 milli-amps
Connecting Block Dimensions: 2.36” W x 1” H x 3.22” D

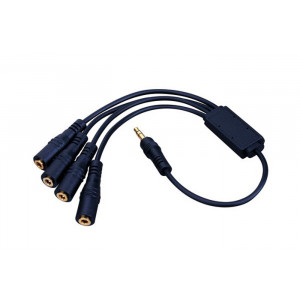

VANCO 3.5mm Stereo Plug to Four 3.5mm Stereo Jacks Cable, WIR-1X4
$12.90
Compatible with Wireless IR Kit (WIR-KIT)
3.5 mm Stereo Plug to (4) Stereo Jack Cable
9″ Black Cable

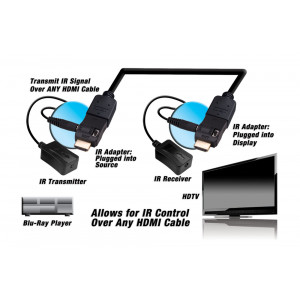

VANCO IR Over HDMI Control Kit Target & Emitter, 280700
$49.90
Allows for IR Control over any HDMI Cable
To Connect add an HDMI IR Adapter to both ends of the HDMI Cable
IR TX Pigtail connects to HDMI IR adapter at the source
IR RX Pigtail connects to HDMI IR adapter at the display
Extends IR Signals more than 100m/328 ft
Supports Dual Band IR
HDMI IR Adapters are IR or CEC configurable

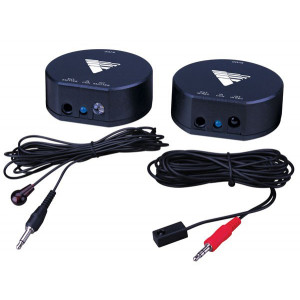

VANCO Wireless IR Kit 200 meters (656 ft), WIR-KIT
$89.90
Transmits IR signals wirelessly over 915 MHz RF
Allows for wireless IR transmission up to 200 meters (656 ft)- no cable required
Allows up to 4 devices to be controlled remotely by a single receiver.
10 discrete channels allow for pairing of up to 10 sources and 10 displays within the same installation environment (Additional Transmitters and Receivers sold separately)
IR Frequency: 20-60 Hz
Easy to Use and simple to set up

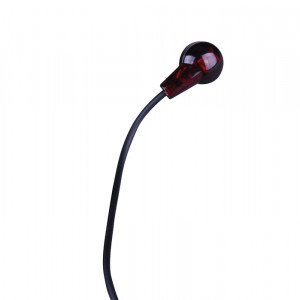

Optional IR TX and RX pigtails included for use when hiding transmitter and receiver units
Compatible with most universal full band carrier frequency infrared remote
Features frequency hopping technology to minimize RF interference
Includes (2) 5V DC power supplies

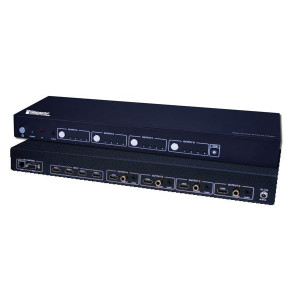

VANCO HDMI 4x4 Matrix Switch 4k with IR, VAN4K44
$799.00
Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
Features 4 digital and analog audio outputs
Ultra HD - Supports resolutions up to 4K2K @ 30 Hz, 24 bit color, 4:4:4 chroma or up to 4K2K @ 60 Hz, 12 bit color and 4:2:0 chroma
Compatible with displays and devices with Audio Return Channel (ARC) capabilities
ARC allows audio content from a display to be sent back to the matrix where the audio can then be extracted to an audio video receiver or amplifier
Supports 4 Channels of ARC
Control via manual, IR, RS232 and TCP/IP
Additional EDID management can be achieved using the RS232 connection and the interface to encourage device communication and compatibility for a seamless installation
HDCP 2.2 Compliant
Deep Color Supported up to 48 bit
Power Supply: 12V/2.5A DC power adapter
Dimensions: 17.3” W x 1.8” H x 4.3” D
