Inductors

21 Item(s)

Grid List

HAMMOND 10uH RF Choke, 1532A

$1.09
  • L Tolerance 5%
  • Q Minimum 69
  • Test Frequency 2.5 MHz
  • Self Resonant Min. Freq. 40 MHz
  • Max. D.C. Resist. 0.11 Ohms
  • Max. D.C. Current 1500mA
  • Coil diameter 0.29"
  • Iron Core
  • 0.875" core length, 1.5" lead length
  • Single coil
  • Single

HAMMOND 39uH RF Choke, 1532D

$1.09
  • L Tolerance 5%
  • Q Minimum 70
  • Test Frequency 2.5 MHz
  • Self Resonant Min. Freq. .2 MHz
  • Max. D.C. Resist. 0.65 Ohms
  • Max. D.C. Current 600mA
  • Coil diameter 0.29"
  • Iron Core
  • 0.875" core length, 1.5" lead length
  • Single coil

HAMMOND 55uH RF Choke, 1532E

$1.90
  • L Tolerance 5%
  • Q Minimum 72
  • Test Frequency 2.5 MHz
  • Self Resonant Min. Freq. 17 MHz
  • Max. D.C. Resist. 1 Ohm
  • Max. D.C. Current 500mA
  • Coil diameter 0.29"
  • Iron Core
  • 0.875" core length, 1.5" lead length
  • Single coil

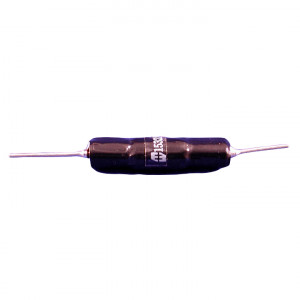

HAMMOND 100uH RF Choke, 1532H

$1.09
  • L Tolerance 5%
  • Q Minimum 107
  • Test Frequency .79 MHz
  • Self Resonant Min. Freq. 12 MHz
  • Max. D.C. Resist. 3 Ohms
  • Max. D.C. Current 400mA
  • Coil diameter 0.29"
  • Iron Core
  • 0.875" core length, 1.5" lead length
  • Single coil

HAMMOND 1mH RF Choke, 1534A

$1.82
  • L Tolerance 5%
  • Q Minimum 83
  • Test Frequency 250 KHz
  • Self Resonant Min. Freq. 2.6 MHz
  • Max. D.C. Resist. 8.6 Ohms
  • Max. D.C. Current 160mA
  • Coil diameter 0.469"
  • Iron Core
  • 0.875" core length, 1.5" lead length
  • 3-Pi coil

HAMMOND 2.5mH RF Choke, 1535B

$1.45
  • L Tolerance 5%
  • Q Minimum 106
  • Test Frequency 250 KHz
  • Self Resonant Min. Freq. 1.3 MHz
  • Max. D.C. Resist. 9 Ohms
  • Max. D.C. Current 160mA
  • Coil diameter 0.469"
  • Ferrite Core
  • 0.875" core length, 1.5" lead length
  • 3-Pi coil

HAMMOND 5mH RF Choke, 1535D

$1.45
  • L Tolerance 5%
  • Q Minimum 91
  • Test Frequency 250 KHz
  • Self Resonant Min. Freq. 1 MHz
  • Max. D.C. Resist. 14 Ohms
  • Max. D.C. Current 160mA
  • Coil diameter 0.531"
  • Ferrite Core
  • 0.875" core length, 1.5" lead length
  • 3-Pi coil

HAMMOND 10mH RF Choke, 1535G

$1.45
  • L Tolerance 5%
  • Q Minimum 108
  • Test Frequency 79 KHz
  • Self Resonant Min. Freq. .71 MHz
  • Max. D.C. Resist. 31 Ohms
  • Max. D.C. Current 100mA
  • Coil diameter 0.531"
  • Ferrite Core
  • 0.875" core length, 1.5" lead length
  • 3-Pi coil
