Printed Circuit Boards

25 Item(s)

Grid List

MG Chemicals Positive Presensitized Copper Boards, 603

$8.95
  • FR4 1/16" (1.60mm)
  • Single sided 3"x5"
  • 1 ounce copper per square foot

DATAK Solder Type Protoboard, 12-628

$4.71
  • 2-Boards per package
  • Dimensions: 1.77" x 1.77"
  • 221 pre-tinned copper donut pads on one side of the board
  • Grid is 15 x 15 pads square
  • (4) Mounting holes are 0.140" diameter on 1.54" centers
  • Board thickness: 1/16"

DATAK Solder Type Protoboard, 12-630

$5.34
  • Dimensions: 2.835" x 3.70"
  • 750 pre-tinned copper donut pads on one side of the board
  • Grid is 25 x 30 pads rectangle
  • (4) Mounting holes are 0.140" diameter on 2.50" and 3.38" centers
  • Board thickness: 1/16"

DATAK Copper Donuts, CF-2

$5.19
  • 308 assorted pieces
  • Self-adhesive 1oz copper
  • .0016" thickness

DATAK Copper Sheets, CF-3

$6.56
  • 2 sheets
  • 3.25" x 10"
  • Self-adhesive 1oz copper
  • .0016" thickness

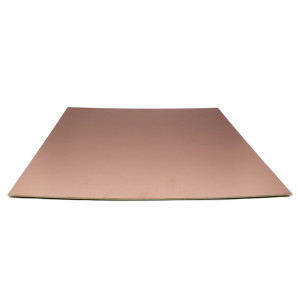

PHILMORE Copper Clad PC Board 12" x 12", PCB1212

$11.71
  • Copper clad PC boards are 1/16" thickness
  • Made of an FR4 substrate with 1 ounce copper surface

PHILMORE Copper Clad PC Board 2" x 4", PCB24

$1.32
  • Copper clad PC boards are 1/16" thickness
  • Made of an FR4 substrate with 1 ounce copper surface

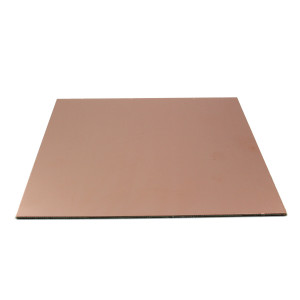

PHILMORE Copper Clad PC Board 6" x 6", PCB266

$3.82
  • Copper clad both sides
  • Copper clad PC boards are 1/16" thickness
  • Made of an FR4 substrate with 1 ounce copper surface

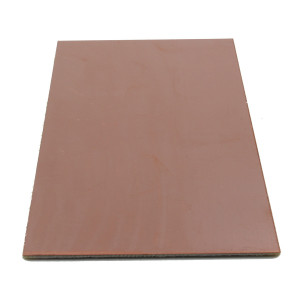

PHILMORE Copper Clad PC Board 3" x 5", PCB35

$1.79
  • Copper clad PC boards are 1/16" thickness
  • Made of an FR4 substrate with 1 ounce copper surface

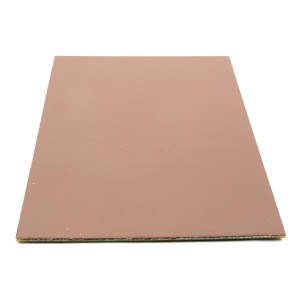

PHILMORE Copper Clad PC Board 4" x 6", PCB46

$2.41
  • Copper clad PC boards are 1/16" thickness
  • Made of an FR4 substrate with 1 ounce copper surface

DATAK Solder Type Protoboard, 12-617

$2.44
  • 5.16" x 1.9"
  • Accommodates circuits containing several IC's

DATAK Solder Type Protoboard, 12-611

$1.76
  • 1.7" x 2.9"
  • Accommodates transistors and common passive components

MG Chemicals Positive Presensitized Copper Boards, 606

$9.95
  • FR4 1/16" (1.60mm)
  • Single sided 4"x6"
  • 1 ounce copper per square foot

MG Chemicals Positive Presensitized Copper Boards, 609 MG

$11.25
  • FR4 1/16" (1.60mm)
  • Single sided 6"x6"
  • 1 ounce copper per square foot

DATAK ProtoBox Kit, 12-200

$7.50
  • Protoboard 2.3" x 2.3"
  • Box size 2.6" x 2.6" x 1.1"

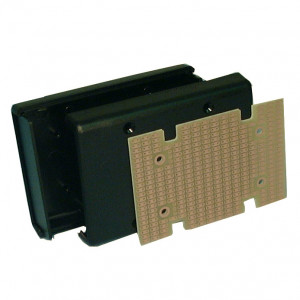

DATAK ProtoBox Kit, 12-203

$10.00
  • Protoboard 3.3" x 2.3"
  • Box size 3.6" x 2.6" x 1.1"

DATAK Solder Type Protoboard 4 pack, 12-604

$4.97
  • 4-Boards per package
  • Solder type board with 176 copper donut pads - single sided
  • (4) Mounting holes 1/8" diameter spaced 1.3" x 1.49"
  • Board thickness: 1/16"

DATAK Solder Type Protoboard 3 pack, 12-606

$4.97
  • (3) Boards per package
  • Solder type board with 285 copper donut pads - single sided on 0.10" centers
  • 15 x 19 grid
  • (4) Mounting holes are 1/8" diameter spaced on 1.6" x 2.0" centers
  • Board thickness: 1/16"

DATAK Solder Type Protoboard 2 pack, 12-609

$4.97
  • Package of 2
  • 560 copper donut pads in a 20 x 28 grid
  • Copper solder pads are spaced on .100" centers
  • Pads will accommodate small component leads, ICs and header pins
  • (4) mounting holes 0.140" spaced 2.24" and 2.92" centers
  • 1/16" board thickness

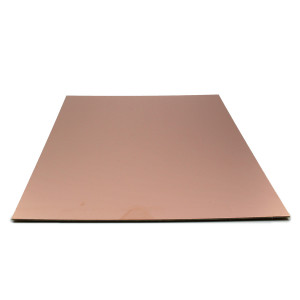

PHILMORE Copper Clad PC Board 8" x 10", PCB810

$7.27
  • Copper clad PC boards are 1/16" thickness
  • Made of an FR4 substrate with 1 ounce copper surface
