If you like to tinker and want to explore the exciting world of 3D printing consider 3D Printer Kits from “You-Do-It” Electronics Center. Learn the ins-and-outs of 3D printing by building your own 3D printer from a 3D printer kit. Once assembled use your 3D printer to explore to possibilities of building 3D models before deciding if you want to invest in a fully-assembled machine. Discover why 3D printer kits are the best way to jump into 3D printing – providing you are willing to tinker with your machine. Questions – ask the expert staff at “You-Do-It” Electronics Center.
material: clear tempered glass
thickness: 0.12" (3mm)
size: 8.46 x 8.46" (215x215mm)
ensures a perfectly flat and level bed
smoother finish of bottom layer
tempered glass: less likely to shatter than ordinary window glass or mirrors
Print with 1.75mm PLA or ABS filament on your Velleman K8200: 3D Printer
Higher resolution 3D prints
EXTRUSION UPGRADE KIT INCLUDES:
0.35mm extruder nozzle for 1.75mm filament
Extruder heater and sensor
Direct drive unit with stainless steel pulley
High power plug-in stepper driver
All necessary installation hardware
The spare part, NTC104LAF/SP is a 100k NTC Thermistor for the second generation hot end on the K8200 3D Printer
Fits through a hole in the heater block for better temperature control of the extruder’s hot end
The thermistor provides feedback to the controller for temperature control

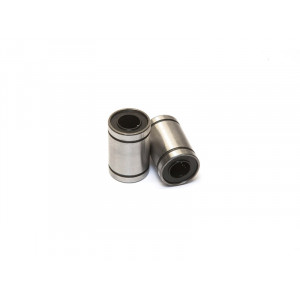

This standard .8mm bearing will replace any bearing included in the K8200 3D printer
Bearings play an important role in 3D printing, make sure your K8200 is running smoothly and effectively by replacing any faulty bearings.
If your not happy with the speed of the 3D printer, it may be time to replace the CPU.
This controller board comes fully soldered and requires no assembly.
Contains header connections for extruder heating, cooling and motors; filters for noiseless operation.
Replacement stepper motor driver card for Velleman K8200 3D Printer
Controls the MOTS4/SP Stepper Motors of the K8200 3D Printer
Can be used with a wide variety of stepper motors
Simple step and direction control interface
Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
Short-to-ground and shorted-load protection
simple step and direction control interface
six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
current adjust trimmer
can interface directly with 3.3 V and 5 V systems
over-temperature thermal shutdown, over-current shutdown and under-voltage lockout
short-to-ground and shorted-load protection
minimum operating voltage: 8.2 V
maximum operating voltage: 45 V
continuous current per phase: 1.5 A
maximum current per phase: 2.2 A (with cooling)
minimum logic voltage: 2.5 V
maximum logic voltage: 5.25 V
dimensions: 20 x 15 mm (0.8" x 0.6 ")
print technology: Fused Filament Fabrication (FFF - FDM)
layer resolution: standard 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
large build volume: 200 mm build platform diameter (0/- 5 mm), 225 mm build height (0/+75 mm) (depends on object diameter)
print speed: 20-50 mm/s (can go up to 75 mm/s)
travel speed: 180-200 mm/s
build plate surface: removable layer of BuildTak™ (K8800-BT)
filament diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm) - open filament policy
prints: PLA, ABS, TPU, PET and others
nozzle: E3D compatible
nozzle diameter: 0.35 mm (one nozzle supplied)
maximum nozzle operating temperature: 295°C
bed compensation: automatic bed compensation performed by the nozzle (no manual calibration needed)
calibration: automatic first-time set-up calibration
couplers: backlash free magnetic effector-couplers
advanced safety features: auto shutdown when print head detaches or temperature is incorrect (most unlikely)
filament run out detector: automatic pause and reload when printer runs out of filament
change filament function while printing: this means that you can print objects with multiple filaments/colours
effective pause function: pause your print job without nozzle leakage
end stops: infrared based end stops
firmware: modified Open Source Marlin 3D Printer, firmware is user upgradable
software: custom Repetier version (Windows) - Cura profiles (Mac)
dimensions: W 35 x D 35 x H 77 cm (without filament spool)
frame: rigid aluminium extrusion risers and 4 mm aluminium top and bottom plates for a sturdy frame and precision ground 100 mm vertical rods and brass bushings
fully Open-Source (hard- and software)
weight: 10 kg
ambient operating temperature: max. 30°C
storage temperature: -10°C to +50°C
hybrid kit: quick and straightforward build, no soldering required
communication: SD card or USB 2.0 (automatic SD card recognition)
controller board: AVR ATmega2560 based
AC input: 100 - 240 VAC 50-60 Hz 90 W max.
display: 128 x 64 px graphic display with blue backlight
QUALITY & SIZE
At under 10 inches tall and under 6 inches wide, print with the same, high-quality as the K8400 at a fraction of the size. Use 1.75 mm PLA or ABS filament to create professional quality 3D prints right from your desk.
MAGNETIC REMOVEABLE BED PLATE
The metal Nano bed plate magnetically attaches to the bed holder. After a print is completed, detach the bed plate for easy print removal.
BED LEVELING MEMORY
Manually set your bed leveling settings and save them to the K8600's memory.
Hotend isolator guides have upgraded from the K8400's plastic model to a new metal version. A fan is also attached to the hotend isolator to assist in temperature control.
PEACE AND QUIET PRINTING
Print your prototypes and projects in near silence with a low operating noise level of 45 dBA.
