Sensors & Transducers

Items 1 to 36 of 58 total

Grid List

NTE Precision Temperature Sensor, 7225

Directly Calibrated in °K 1°C Initial Accuracy Operates From 450μA to 5mA Less Than 1Ω Dynamic Impedance Ab

VELLEMAN PIR Sensor Module, VMA314

Voltage: 5 VDC connection: 3 pin: GND, VCC and OUT adjustments: sensitivity and delay (by trimmer) delay time: 0.3 to 18 s output level: high = 3 V, Low = 0 V max. sensor distance: 7 m operating temperature: -15 to +70°C detection angle: 120 ° dimensions: 32 x 24 x 25 mm

PHILMORE Cadmium Sulfide Photo Cell 3pk, 10805

5mm OD...125mW Epoxy - Coated Low Profile Cell High reliable power dissipation  Compact dimensions

PHILMORE Cadmium Sulfide Photo Cell 3pk, 10807

7mm OD...150mW Epoxy - Coated Low Profile Cell High reliable power dissipation  Compact dimensions

PHILMORE Cadmium Sulfide Photo Cell 2pk, 10810

10mm OD...400mWEpoxy - Coated Low Profile CellHigh reliable power dissipation Compact dimensions

VELLEMAN Temperature/Humidity Sensor Module, VMA311

Voltage: 5 VDC temperature range: 0 - 50 °C , error of +/- 2 °C Humidity: 20 - 90% RH +/- 5% RH error interface: Digital size: 39 x 23 x 10 mm.

VELLEMAN Sound Sensor Module, VMA309

voltage: 3.3 to 5 VDC outputs: one analogue + one digital output fixation: 1 mounting screw hole 3 mm 2 indicator LEDS: 1 power indicator + 1 comparator output indicator frequency response: 50 Hz - 20 KHz impedance: 2.2 K Ohm sensitivity: 48 - 66 dB operating temperature: -40 to +85°C size: 44 x 15 x 10 mm weight: 4 g

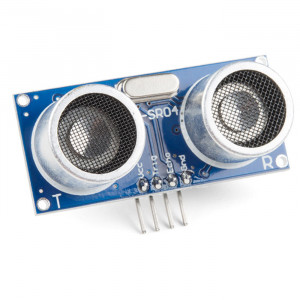

VELLEMAN HC-SR05 Ultrasonic Sensor Module, VMA306

Voltage: 4.5 to 5.5 VDC Sound frequency: 40 KHz measurement resolution: 0.3 cm measurement angle: 15 ° supply current: 10 to 40 mA Trigger Pin format: 10 uS pulse connector: 5 pin male detection distance: 2 to 450 cm dimensions: 45 x 20 x 13 mm

VELLEMAN SD Card Logging Shield 2 pack, VMA304

100% compatible with Arduino® Capable of holding up to 2gb of extra memory Specifications: voltage: 3.3 V - 5 V Protocol: SPI dimensions: 2.05" x 1.18" x 0.47" (52 x 30 x 12 mm) weight: 0.28 oz. (8 g) required library: SD.h

VELLEMAN DS1302 Real Time Clock Module 2 pack, VMA301

manages all timekeeping functions: real-time clock counts seconds, minutes, hours, date of the month, month, day of the week, and year with leap year 31 x 8 battery-backed general-purpose RAM Simple Serial Port Interfaces to most Microcontrollers: Simple 3-Wire Interface TTL compatible: VCC = 5 V single-byte or multiple-byte (burst mode) data transfer for read or write of clock or RAM data low power operation extends battery backup run time: 2.0 V to 5.5 V full operation uses less than 300 nA at 2.0 V temperature range: 0°C to +70°C

VELLEMAN 3-axis Digital Acceleration Sensor Module -MMA7455, VMA204

IIC / SPI and interfaces Z-axis self calibration 2.4 V - 3.6 V operation (onboard regulator, module operates from 5 V) Programmable threshold interrupt output level detection for motion recognition (shock, shock & move, free fall) pulse detection for single pulse or double pulse recognition sensitivity: 64 LSB/g @ 2 g, @ 8 g in 10-bit mode selectable sensitivity (± 2 g, ± 4 g, ± 8 g) for 8-bit mode

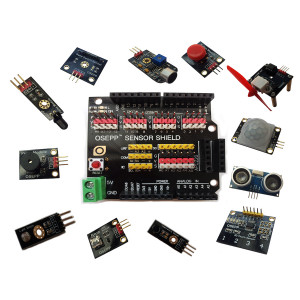

OSEPP 101 Sensor Kit, SENS-01

Kit comes with:  OSEPP Sensor Shield 3-Pin Jumper Wires mini USB Cable 9 Volt Battery Adaptor Female to Female Jumper Cables 4-Digit Touch Sensor Module Fan Motor Module Flame Sensor Module LED Modules Light Sensor Module Temperature Sensor Module Passive Infrared Sensor Module Piezo Sensor Module Potentiometer Sensor Module Push Button Module Reed Switch Sensor Module Voltage Sensor Module Ultrasonic Sensor Module

VELLEMAN IR Transmitter Modules 2 pack, VMA316

max. current: 20 mA 940nm wavelength Connection: 3 pins, only GND (-) and S is used weight: 2 g dimensions: 35 x 15 x 8 mm Attention: There is no current limiting resistor on the module.

VELLEMAN IR Receiver 2 pack, VMA317

Photo detector and preamplifier in one package internal filter for PCM frequency inner shield, good anti-interference ability high immunity against ambient light Improved shielding against electric field disturbance 3.0 V or 5.0 V supply voltage, low power consumption TTL and CMOS compatibility Specifications: Supply Voltage: 3 to 5 VDC max. supply current: 1.5 mA B.P.F. center frequency: 37.9 KHz dimensions: 28 x 15 x 10 mm

VELLEMAN RGB LED Modules 2 pack, VMA318

Power Dissipation: R 60mW, G 95mW, B 95mW Peak Forward Current (0,1ms Pulse Width): 100 mA for each colour continous forward current: 25 mA for each LED max. reverse voltage: 5 V operating temperature: -40 °C to 80 °C dimensions: 28 x 15 x 5 mm Common: Cathode (-) Attention: Current has to be limited by using resistors.

OSEPP IR Receiver, IRREC-02

100% Arduino Compatible 3 pin outs: G (GRD),V (VCC),S ( Signal)  3-5 V operating range Operates at a frequency of 38khz

VELLEMAN Electronic Parts Pack for Arduino, VMA503

What's Included: 1 Breadboard 1 Plastic plate 30 Breadboard jumper wire 8 Colored push buttons (red, green, blue and yellow) 40 Jumper pins 38 Colored LEDs (red, green, blue and yellow) 2 RGB LEDs 10 22pF capacitors 10 100pF capacitors 10 10nF capacitors 10 100nF capacitors 10 100µF capacitors 1 Trim potentiometer 2 LDR 2 Diodes 1 LM35 temperature sensor 1 Photodiode 1 SN74HC595N 8-bit shift registers 1 Resistor set 1 Servo motor 1 4-digit 7 segment display 1 1-digit 7 segment display 1 8 x 8 LED dot display

VELLEMAN 3.3 v / 5 v ttl Logic Level Converter Module, VMA410

low side (3.3 V): 2 inputs and 2 outputs high side (5 V): 2 inputs and 2 outputs other connections: Vlow (3.3 V), VHigh (5 V) , pass-trough GND dimensions: 15 x 16 x 15 mm Breadboard compatible

VELLEMAN RFID Read/Write Module, VMA405

Operating Voltage: 3.3 VDC working current: 13 to 26 mA sleep current: < 80 uA peak current: < 30 mA working frequency: 13.56 MHz Supported card types: Mifare cards Interface / protocol: SPI Controller chip: MFRC522 Data transmission speed: Max. 10 Mbit / s dimensions: 66 x 40 x 7 mm includes: 2 tags (1 card , 1 fob)

VELLEMAN DC-DC Adjustable Voltage Step-down Module LM2596S, VMA404

input voltage: 3 to 40 VDC Output Voltage: 1.25 to 35 VDC max. input current: 2.5 A Chip: LM2596S dimensions: 49 x 26 x 12 mm

VELLEMAN Temperature Sensor Module 2 pack, VMA320

NTC type: NTC-MF52 3950 temperature range: -55 °C to 125 °C accuracy: +/- 0.5°C pull-up resistor: provided, 10 KOhm connection: 3 pin, (+) 5V , (-) ground, (S) analogue output dimensions: 20 x 15 x 5 mm

VELLEMAN DC-DC Voltage Boost Module 2 pack, VMA403

Input Voltage range: 2.5 to 5 VDC Output Voltage: 5 VDC Connection: solder pads dimensions: 34 x 16 x 8 mm

VELLEMAN DC-DC Voltage Step-up Module LM2577, VMA402

input voltage: 3.5 to 35 VDC Output Voltage: 5 to 55 VDC (adjustable) max. input current: 3 A Continous input current: 2 A Chip: LM2577 dimensions: 43 x 30 x 12 mm

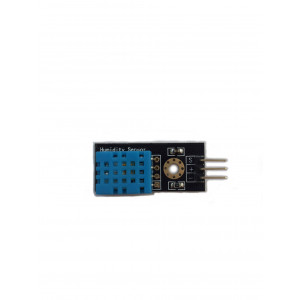

OSEPP Humidity & Temperature Sensor, HUMI-01

100% Arduino Compatible 3 pin outs: GRD (-) VCC (+) S Signal 20 meter signal transmission Features: Power supply voltage: 5V Temperature Range: 0-50C Temperature Accuracy: +/- 2C Humidity Range: 20-90%RH Humidity Accuracy: +/_ 5%RH

VELLEMAN 4 Channel Relay Module, VMA400

Standard interface that can be controlled directly by any microcontroller Opto-isolated inputs indicator LEDs for relay output status Specifications: control input current (in1 to in4): 15 - 20 mA Control input Voltage: 5 - 12 VDC relay output: 250 VAC 10 A, 30 VDC 10 A (non-inductive)

VELLEMAN MOSFET Driving Module IRF520, VMA411

operating voltage: 3 to 5 VDC max. load voltage: 0 to 24 VDC input: SIG pin, logic level 3 to 5 VDC max. load current: 5 A (a heatsink is required for loads > 1 A) Used MOSFET: IRF520 dimensions: 34 x 21 x 16 mm

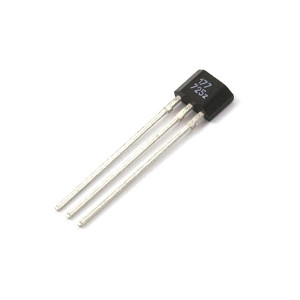

SPARKFUN Hall Effect Sensor - US1881, COM-09312

3.5V to 24V DC operation voltage Low current consumption Temperature compensation Wide operating voltage range Open-Collector pre-driver 50mA maximum sinking output current Reverse polarity protection Lead Free Package: TO-92

VELLEMAN 5VDC Relay Module, VMA406

Operating Voltage: 5 VDC relay current rating: 10 A at 250 VAC, 10 A at 30 VDC (non inductive) relay contact: C, NO, NC connection: GND, +5 VDC, control input (5 to 12 VDC) dimensions: 40 x 27 x 18 mm

VELLEMAN Hall Effect Modules 2 pack, VMA313

Voltage: 5 VDC connection: 3 pins, +(middle pin), ground and S (data out) output (S): Schmitt Trigger, Active Low Activation: 30 Gauss Deactivation: 10 Gauss LED indicator: ON when activated size: 25 x 15 mm weight: 2 g

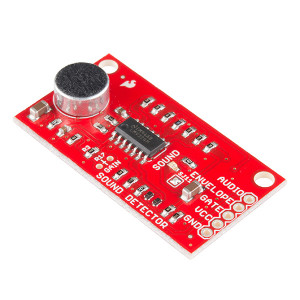

SPARKFUN Sound Detector, SEN-12642

Provides an audio output, but also a binary indication of the presence of sound, and an analog representation of its amplitude The 3 outputs are simultaneous and independent, so you can use as many or as few as you want at once

SPARKFUN Pulse Sensor, SEN-11574

Kit Includes: Pulse Sensor Board 24-inch Color-Coded Cable with Standard Male Headers Ear Clip for Earlobe Heart Rate Measurement Velcro Finger Strap Transparent Stickers to Protect Sensor

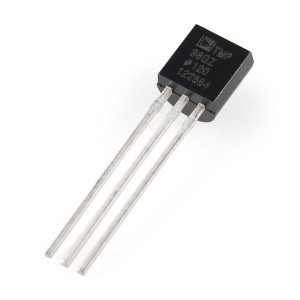

SPARKFUN Temperature Sensor - TMP36, SEN-10988

Voltage Input: 2.7 V to 5.5 VDC 10 mV/C scale factor 2C accuracy over temperature 0.5C linearity Operating Range: -40C to +125C

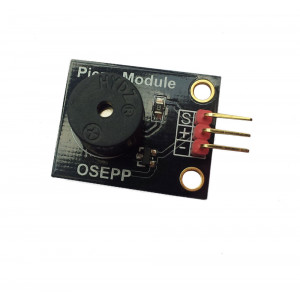

OSEPP Piezo Sensor Module, PIEZO-01

Wide supply voltage range: 3.3V to 5V Digital output buzzer Analog input sound pressure sensor

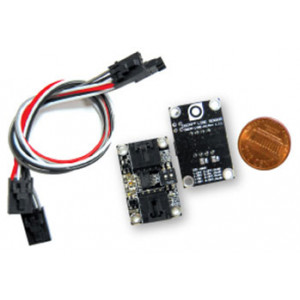

OSEPP IR Line Sensor Module, LINE-01

Plug and play with OSEPP IC Expansion Shield Two IR sensors per board with independent outputs Flexible blackness threshold that can be set via software setting 8-bit ADC for digitizing sensor output, sample rate up to IC frequency Support IC interfacing with 4 programmable 7-bit address: 0x48, 0x49, 0x4A, 0x4B Provides pass-through connector to support daisy chaining of multiple sensors from the OSEPP Sensor Module family Provides 0.1 breakout points for power and IC interface pins access

OSEPP Light Sensor Module, LIGHT-01

Suitable supply voltage: +3 to 5Vdc Analog voltage output: 0 to 5 Vdc Detects ambient light density Works with CdsPhotoresistor Interface with microcontrollers and logic circuits Analog sensors Uses PH 2.0 socket Special sensor with Arduino expansion boards
