Crimp Dies

20 Item(s)

Grid List

GREENLEE Replacement Screws for Die Sets, PA2303

$7.90
Replacement Screws for Greenlee crimp tools that have interchangeable dies 2 Pack

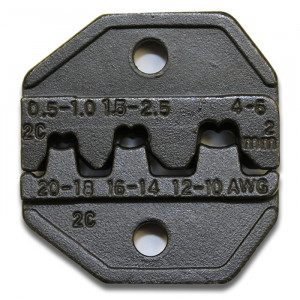

ECLIPSE Lunar Series Die Set for Open Barrel Contacts, 300-039

$16.53
Application: Open barrel contacts, D-sub, Molex, AMP Style Pin Crimp Size: AWG 20-18/ 16-14/ 12-10 DIN 0.5-1.0/ 1.5-2.5/ 4.0-6.0mm²

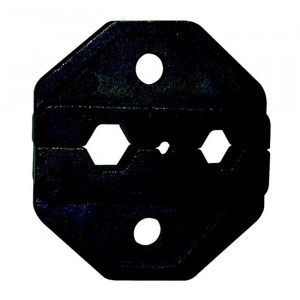

ECLIPSE Lunar Series Hex Crimp Die for RG58/59/62AU, 300-045

$16.53
Application: RG58, 59 and 62 AU, BNC and TNC 3-piece connectors Crimp Size: HEX .068", .213", .256" HEX 1.73, 5.41, 6.5mm

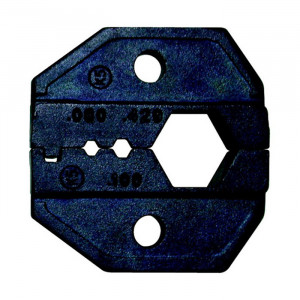

ECLIPSE Lunar Series Hex Crimp Die for RG8 BNC/TNC, 300-049

$16.53
Application:  RG8, RG11, RG213, RG216, BNC, TNC and N Series Connectors, LMR400 Crimp Size: HEX .80", .100", .429" HEX 2.03, 2.54, 10.90mm

ECLIPSE Lunar Series Ratched Crimper Frame only with Die Screws, 300-054

$27.05
Compatible with our ProsKits Lunar series dies from Eclipse and our Paladin Dies

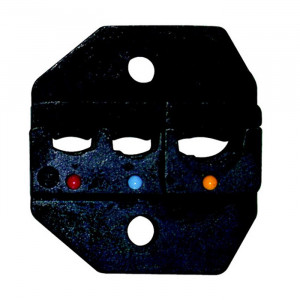

ECLIPSE Lunar Series Die Set for Red/Yellow/Blue Crimp Terminals, 300-058

$16.53
Red, Yellow, Blue Insulated terminals Nylon and Vinyl AWG 22-18/ 16-14/ 12-10 DIN 0.5-1.0/ 1.5-2.5/ 4.0-6.0mm²

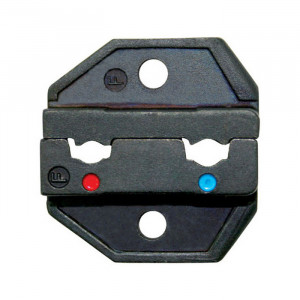

ECLIPSE Lunar Series Die Set for Insulated Flag Terminals, 300-070

$16.53
Red and Blue Insulated Flag Terminals AWG 22-18/ 16-14 DIN 0.5-1.0/ 1.5-2.5mm²

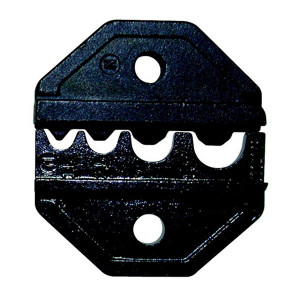

ECLIPSE Lunar Series Die Set for Uninsulated Terminals, 300-095

$16.53
Uninsulated Terminals AWG 22-18/ 16-14/ 12-10/ 8 DIN 0.5-1.0/ 1.5-2.5/ 4.0-6.0/ 10.0mm²

ECLIPSE Lunar Series Die Set for Wire Ferrules 12-22 AWG, 300-097

$16.53
Wire ferrules (Insulated and Non-Insulated) AWG 22/20/18/16/14/12 DIN 0.5/0.75/1.0/1.5/2.5/4.0mm²

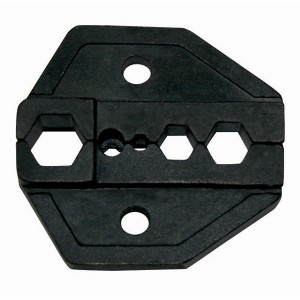

ECLIPSE Lunar Series 5 Cavity Hex Die for RG Cables, 300-038

$16.53
BNC, TNC, Mini-UHF, RG58, 141, 142, 303, 400, 59, 62, 210 Belden 8279, 8281, 9231, 9141 RG-6, 212, 222, 304 HEX .068", .098", .213", .255", .321" HEX 1.73, 2.49, 5.41, 6.48, 8.15mm

GREENLEE 1300/1800 HDTV Universal Crimp Die, PA2699

$29.90
Application : For Coaxial Connectors Cable Type : Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, 179DT Connection : HDYV BNC/TNC True 75-ohm Crimp Size : 0.178 IN (4.500 MM), 0.255 IN (6.500 MM), 0.278 IN (7.000 MM), 0.068 IN (1.700 MM), 0.041IN (1.000 MM) HEX

GREENLEE Mini Coax RG58/RG174 Crimp Die, PA2653

$29.90
Common 2-piece and 3-piece SMA/SMB/BNC/TNC & Mini-UHF Interchangeable Crimp Die

GREENLEE N-Type RG8/RG11/RG213 Crimp Die, PA2656

$29.90
Common 2-piece and 3-piece "N"-Type (Kings, ADC, Amphenol, etc.) Intrerchangeable Crimp Die

GREENLEE Non-Insulated Terminal 22-8AWG Crimp Die, PA2031

$29.90
Application : For Non-Insulated Terminal Crimpers Cable Type : Non-Insulated Terminals And Lugs Connection : Solid Or Stranded Wire, 22 - 8 AWG (0.340 - 0.100 SQ-MM) Crimp Size : 10-8 AWG (6.000 - 10.000 SQ-MM), 14-12 AWG (2.500 - 4.000 SQ-MM), 18-16 AWG (0.750 - 1.500 SQ-MM), 22-20 AWG (0.340 - 0.500 SQ-MM)

GREENLEE Open Barrel 22-12AWG Crimp Die, PA2033

$29.90
Application : For Open Barrel, Box And Terminal Systems Cable Type : Open Barrel Non-Insulated Terminals, Narrow Lugs And Power Contacts Connection : Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM), F Type Crimp Size : 22-18 AWG (0.340 - 0.750 SQ-MM), 16-14 AWG (1.500 - 2.500 SQ-MM), 12-10 AWG (4.000 - 6.000 SQ-MM)

GREENLEE Insulated Terminal 22-8AWG Crimp Die, PA2035

$29.90
Application : For Insulated Terminal Crimpers Cable Type : Insulated Terminals And Lugs Connection : Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM) Crimp Size : 12-10 AWG (6.000 - 4.000 SQ-MM) Yellow, 16-14 AWG (2.500 - 1.500 SQ-MM) Blue, 22-18 AWG (0.340 - 0.750 SQ-MM) Red

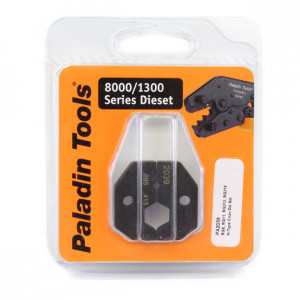

GREENLEE N-Type RG8/11/213/216 Crimp Die, PA2039

$29.90
Application : For Coaxial Connectors Cable Type : RG8, RG11, RG213, RG216 Connection : N-Type, MS39012 Type Crimp Size : 0.415 IN (10.500 MM), 0.095 IN (2.400 MM) HEX

GREENLEE Wire Ferrule 22-10AWG Crimp Die, PA2095

$29.90
Application : For Wire Ferrules Cable Type : Insulated And Non-Insulated Wire Ferruls Connection : Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM) Crimp Size : 22-20 AWG (0.340 - 0.550 SQ-MM), 18-16 AWG (0.750 - 1.500 SQ-MM), 14-12 AWG (2.500 - 4.000 SQ-MM), 10 AWG (6.000 SQ-MM)

GREENLEE Crimper for RG58/59/62AU BNC/TNC, PA1317

$59.90
Cable Type : RG58, RG59, RG62AU Connection : BNC/TNC And 3 Piece Crimping Range : 0.256 IN (6.500 MM), 0.213 IN (5.400 MM), 0.068 IN (1.700 MM) Hex
