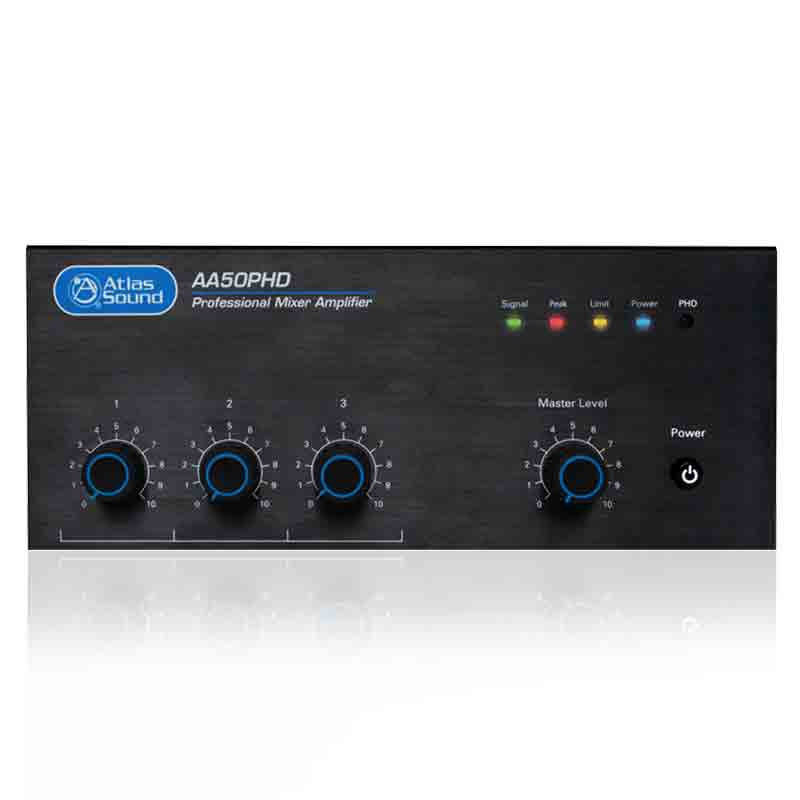

ATLAS 4-Input, 50-Watt Mixer/ Amplifier with Automatic System Test (PHD)
The AA50PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and three stereo line inputs, the AA50PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA50PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD).
What Sets the AAPHD Series Apart?
The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8Ω, and the loudspeaker wire is free from shorts.
FREQUENCY RESPONSE | 50Hz - 15kHz |
CONNECTOR TYPE | 4 Position Phoenix 3.5mm Pitch |
POWER OUTPUT | Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 50W RMS |
HEIGHT | 3.66" (93mm) |
WIDTH | 8.27" (210mm) |
DEPTH | 10.87" (276mm) |
WEIGHT | 10.5ib |
SHIPPING WEIGHT | 12.4lb |
VOLTAGE COMPATIBILITY | 110V - 120V |
