SANGEAN AM / FM Analog Tuning Portable Receiver

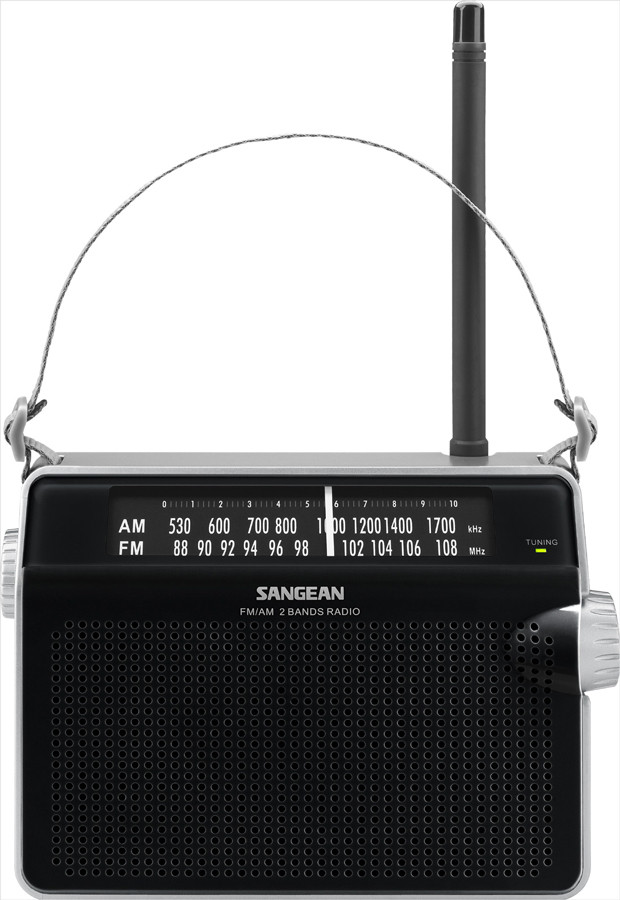

The Sangean PR-D6 Compact Analog Tuning Portable Radio is an attractively styled portable radio with simplicity and function in mind and it offers a combination of features for enjoyable FM / AM listening. In true Sangean tradition FM / AM reception is excellent providing clear and static free listening, the dial precisely tunes your station selection displayed in a softly lighted analog display.
| TUNING | Type | Analogue | |||
| Rotary Tuning | V | ||||
| DISPLAY | LCD / VFD / Dial Scale | Dial Scale | |||
| TUNER | FM | Frequency (MHz) | 87.5 - 108 | ||
| AM / MW | Frequency (kHz) | 520 - 1710 | |||
| AUDIO | EQ | Treble / Bass Control | V (Rotary) | ||
| OUTPUT DEVICES | Speaker | Size ( mm / inch ) | 3 inches | ||
| Impedance | 4 ohms | ||||
| OUTPUT POWER (TYPICAL) | AC / DC / AC to AC in (Speaker) | 1W (DC - IN) | |||
| Batteries (Speaker) | 1W | ||||
| Earphones | 3 + 3 mW | ||||
| POWER SUPPLY | DC in | 6V DC 400mA | |||
| Batteries (Main Power) | 4x 1.5V (UM - 3) | ||||
| I/O SOCKET | DC in | V | |||
| Earphones | V | ||||
| DIMENSIONS | Width (mm/inch) | 172 / 6.77 | |||
| Height (mm/inch) | 123 / 4.84 | ||||
| Depth (mm/inch) | 55 / 2.17 | ||||
| Weight (g & lb. oz) | 460 / 1lb. 0.2oz | ||||
| PARTICULAR PERFORMANCE | 1 | Rubber Antenna |
