Vises & Holders

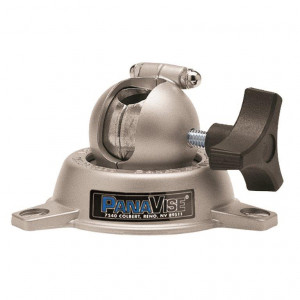

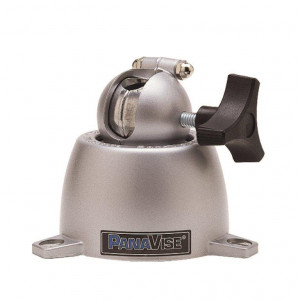

Our most popular base! Accepts all 300 series Heads and the PV Jr. 203 Head or any 5/8" (15.9mm) diameter shaft. Create a versatile work holding system by selecting two or three different Heads! Single control knob and exclusive "split-ball" lock Head firmly in place Base features 4.3125" (109.5mm) bolt circle countersunk for three 1/4" (6.3mm) flat-head screws (not included) Height: 3.75" (95.2mm), Weight: 1.4 lbs. (0.6kg)

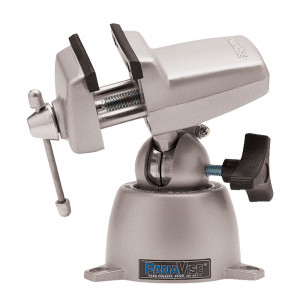

The easy-to-use single knob controls head movement through 3-planes: 90 Tilt, 360 Turn & 360 Rotation Jaws are 2.5" (63.5mm) wide, 0.5" (12.6mm) tall and open to 2.25" (57.1mm) Nylon jaws offer excellent electrical insulation and gentle holding power [continuous heat tolerance up to 200F (93C), intermittent heat to 300F (149C)]. Interchangeable jaws available Base accepts all 300 series Heads and any 5/8" (15.9mm) diameter post Base features 4.3125" (109.5 mm) bolt circle countersunk for three 1/4" (6.3mm) flat-head screws (not included) Height: 6.25" (171.4mm), Weight: 2.7 lbs. (1.2kg)

Our best selling general purpose Vise Head Perfect for hobbies, electronics and small home repairs! Select the 300, 305 or 380 Base and create your own versatile vise. Jaws are 2.5" (63.5mm) wide, 0.5" (12.6mm) tall and open to 2.25" (57.1mm) Nylon jaws offer excellent electrical insulation and gentle holding power [continuous heat tolerance up to 200°F (93°C), intermittent heat to 300°F (149°C)]. Vice accessories available for this Head Throat depth: 1.375" (34.9mm) Height: 4.25" (108.0mm), Weight: 1.5 lbs. (0.7kg)

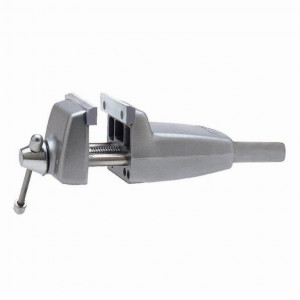

Popular for jewelry making, watch repair and lapidary work! This unique Head can be positioned more closely to the work surface - great for use under a magnifying light When used with a 305 Low Profile Base, you can create a very low-profile Vise Features steel jaws. Throat depth: 1.375" (34.9mm) Length: 7.75" (196.8mm), Weight: 1.4 lbs. (0.6kg)

Popular for jewelry making, watch repair and lapidary work! This unique Head can be positioned more closely to the work surface - great for use under a magnifying light When used with a 305 Low Profile Base, you can create a very low-profile Vise Features steel jaws. Throat depth: 1.375" (34.9mm) Length: 7.75" (196.8mm), Weight: 1.4 lbs. (0.6kg)

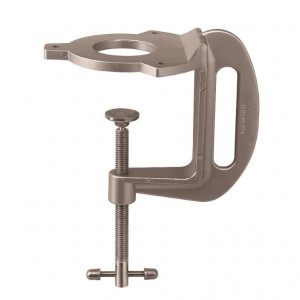

Clamps to a table, workbench, ladder ... wherever you need it! Take your vise anywhere you need it! Clamps to anything up to 3.4375" (87.3mm) thick. Compatible with the 201 PV Jr. Vise and 300 & 305 Bases  Includes four non-marring, anti-skid neoprene pads for additional anti-slip characteristics without excessive tightening of the clamping screw. Finger grip for added convenience Throat depth from center of clamping screw: 2.3125" (58.7mm) Weight: 2.4 lbs. (1.1kg)

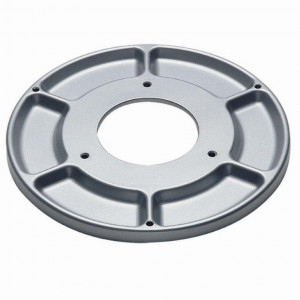

Neatly organizes your small parts and tools! This cast aluminum Base Mount adds stability and has six integral parts wells with rounded and sloped walls for easy parts retrieval. Compatible with the 201 PV Jr. Vise and 300 & 305 Bases Includes six non-marring, anti-skid pads Three 1/4-20 holes are drilled and tapped on the outer lip for mounting accessories such as the 371 Solder Station (page 23) Overall diameter: 8.5" (215.9mm) Height: 0.75" (19.1mm), Weight: 1.9 lbs. (0.9kg)

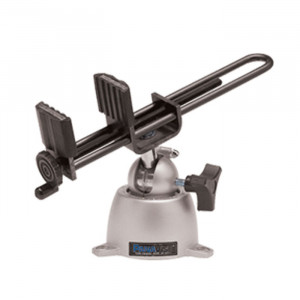

Wide opening jaws open to 6" (152.4mm) and close to 0" Ribbed, neoprene jaw pads are 1.875" (47.6mm) high x 1.5" (38.1mm) wide and provide a sure grip to hold and insulate PC boards and other larger objects; reverse the pads and the wide "V" holds delicate cylindrical objects Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation Base accepts all 300 series Heads and any 5/8" (15.9mm) diameter shaft Base features 4.3125" (109.5mm) bolt circle countersunk for three 1/4" (6.3mm) flathead screws (not included) Height: 7.3125" (185.7mm) Weight: 3.0 lbs. (1.4kg)
